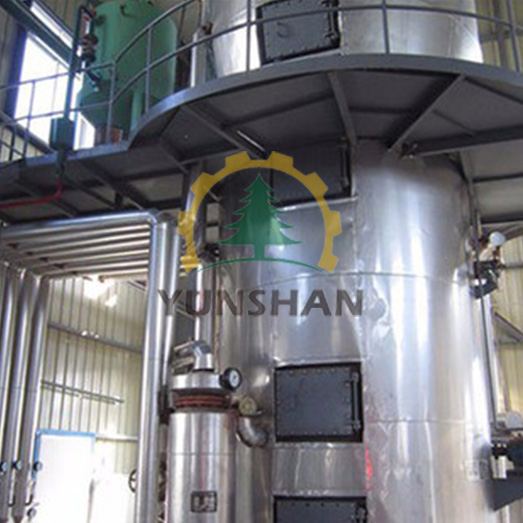

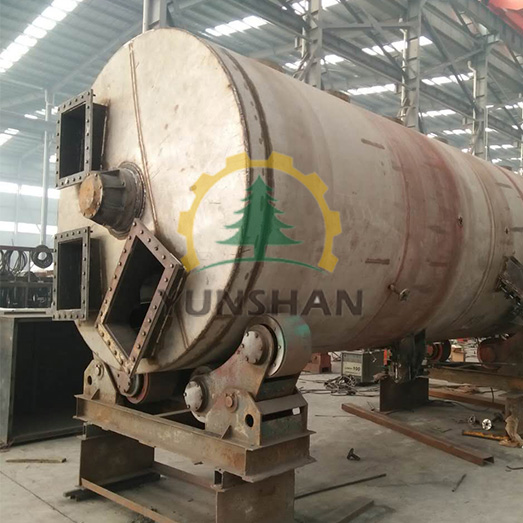

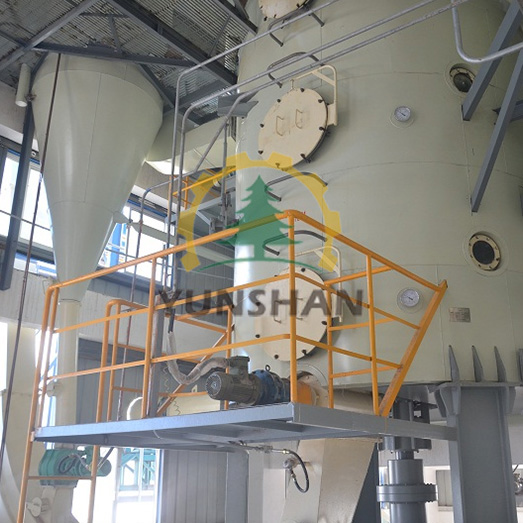

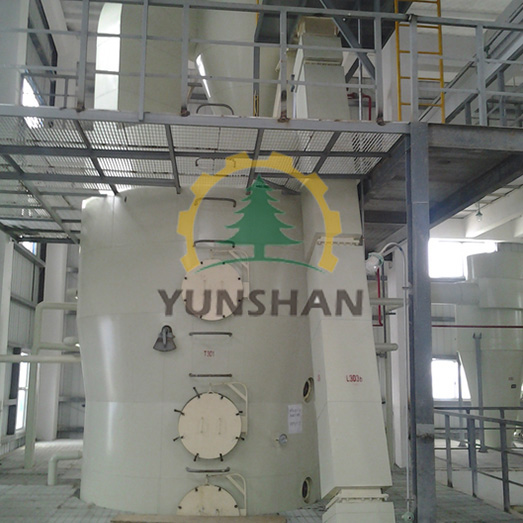

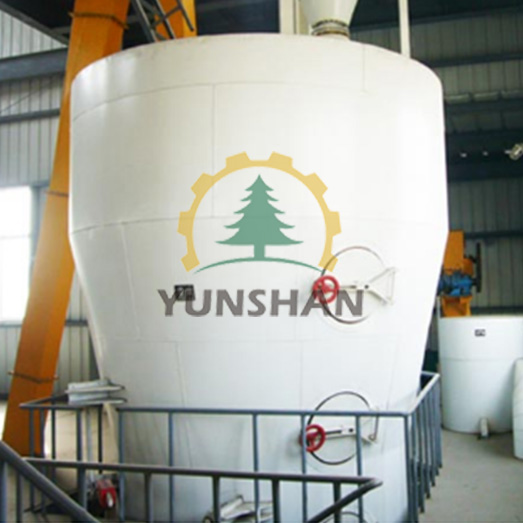

DTDC desolventizer-toaster
It is mainly used for removing solvent from wet meal in leaching section, improving the quality of oil meal and reducing the residual oil rate of oil meal.
Contacting via phone: +86-371-88915968
share us:
Product Performance
1
DTDC desolventizer-toaster is the main equipment of the desolution system in the leaching workshop and can remove the solvent from the wet meal.
2
DTDC desolventizer-toaster is perfect. The wet meal can be pre-desolved, evaporated, dried and cooled, and the wet meal can be packed directly.
3
Large transmission torque and heavy load；
4
When wet meal was completely desolved, urease activity remained between 0.15 and 0.25, which improved the quality of oil meal.
|
Model |
yield（t/d） |
Heat transfer area（m2） |
Total height (mm) |
Motor power(kw) |
weight（t） |
|
DT140 |
30 |
10 |
6020 |
15 |
5 |
|
DT160 |
30～50 |
11 |
6020 |
18.5 |
6.5 |
|
DT180 |
50 |
11.5 |
6300 |
18.5 |
8 |
|
DT200 |
80 |
13.2 |
6300 |
22 |
12 |
|
DT220 |
100 |
15.5 |
6300 |
22 |
14 |
Application
Pretreatment suitable oil:
soy
Sunflower Seeds
Peanut
Rice bran
Rapeseed
Cottonseed
