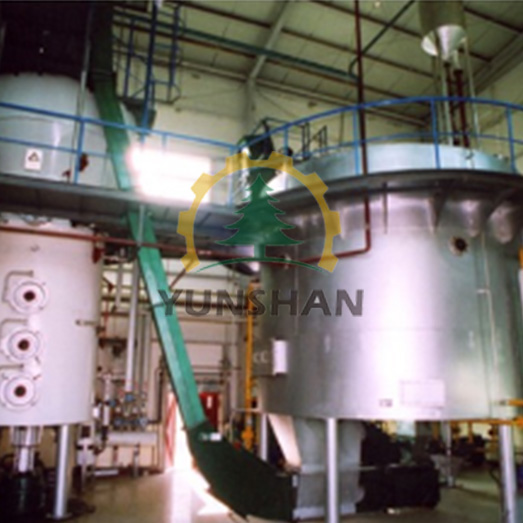

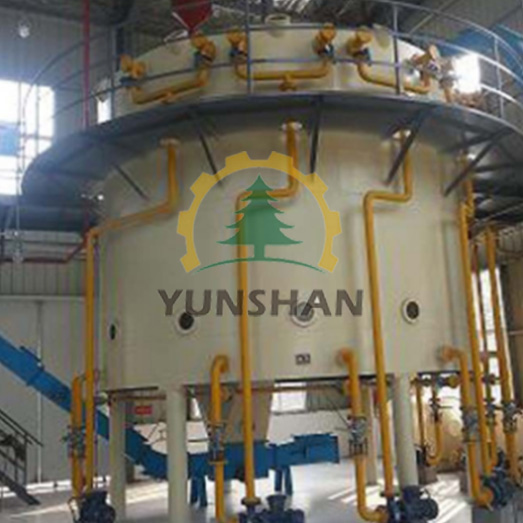

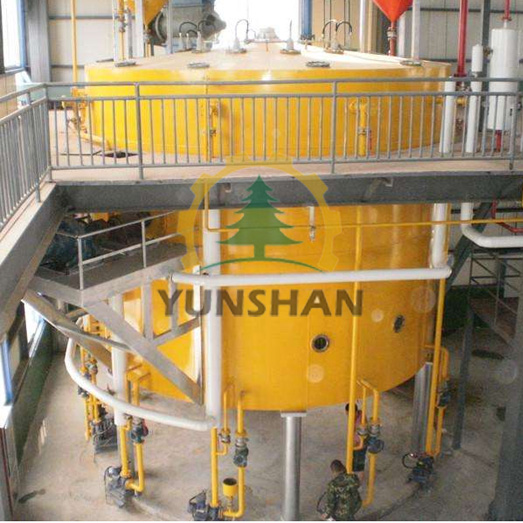

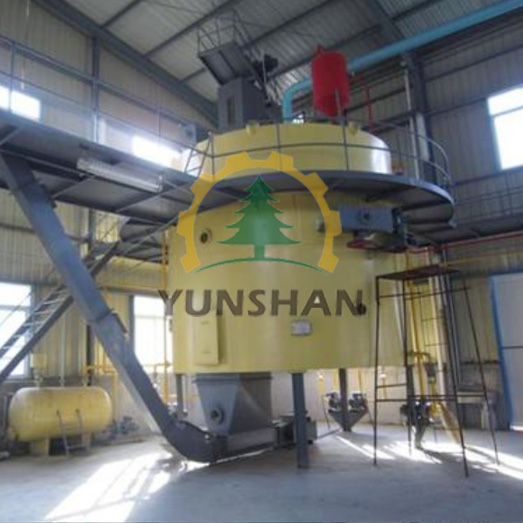

Horizontal rotary extractor
Main Technical Indicators （Taking 300T soybean treated daily as an example）
Handling capacity 300t/d
Residual oil from meal ≤1%
Solvent consumption ≤2kg/T（6#Solvent oil）
Residual oil from meal ≤1%
Solvent consumption ≤2kg/T（6#Solvent oil）
Contacting via phone: +86-371-88915968
share us:
Description
Main Technical Indicators （Taking 300T soybean treated daily as an example）
Handling capacity 300t/d
Residual oil from meal ≤1%
Solvent consumption ≤2kg/T（6#Solvent oil）
Moisture and Volatile Compounds of Crude Oil ≤0.30%
power consumption ≤15 KWh/T
Steam consumption ≤280kg/T（0.8MPa）
Residual solubility of finished meal ≤300PPM
Handling capacity 300t/d
Residual oil from meal ≤1%
Solvent consumption ≤2kg/T（6#Solvent oil）
Moisture and Volatile Compounds of Crude Oil ≤0.30%
power consumption ≤15 KWh/T
Steam consumption ≤280kg/T（0.8MPa）
Residual solubility of finished meal ≤300PPM
Advantage
Product Features:
1
The stainless steel is used to fix the grille, and the transverse grille is added to prevent the backflow of concentrated oil into the blanking grille, so as to ensure the leaching effect.
2
Using rack drive, special rotor balance design, low speed, low power, smooth operation, no noise, low maintenance costs.
3
The feeding system automatically adjusts the speed of the blower and the main engine according to the feeding amount, so that the required material level can be maintained in the storage box all the time, which is conducive to the formation of micro-negative pressure inside the leacher and the reduction of solvent leakage.
4
Advanced design of mixing oil cycle principle is conducive to reducing solvent input, reducing residual oil in meal, increasing mixing oil concentration, and achieving energy saving by reducing evaporation.
5
The lattice design of the high material layer of the leacher is beneficial to the formation of immersion leaching and the reduction of the content of meal residue in the mixed oil, as well as to the improvement of the quality of crude oil and the reduction of scaling in the evaporation system.
6
Especially suitable for the leaching of various pre-pressed cakes.
Application
Pretreatment suitable oil:
soy
Sunflower Seeds
Peanut
Rice bran
Rapeseed
Cottonseed
